Outer sealing element module 4

for single-line building entry systems basic variant 1

FLFA 100 DIN18533

Add to wish list

Outer sealing element module 4 - for single-line building entry systems basic variant 1

Outer sealing element for ESH Basic - BV 1 with fixed/loose flange for buildings with a basement with waterproof sheeting for standing/pressing water load case to DIN 18533, W2.2-E. Suitable for holding bitumen or foil waterproof sheeting.

Outer sealing element module 4 - for single-line building entry systems basic variant 1

Facts

Advantages:

can be installed easily and quickly on-site

Scope of delivery:

1 piece of fixed/loose flange for dowelling
4 pieces of wall fastenings SXR 10x80

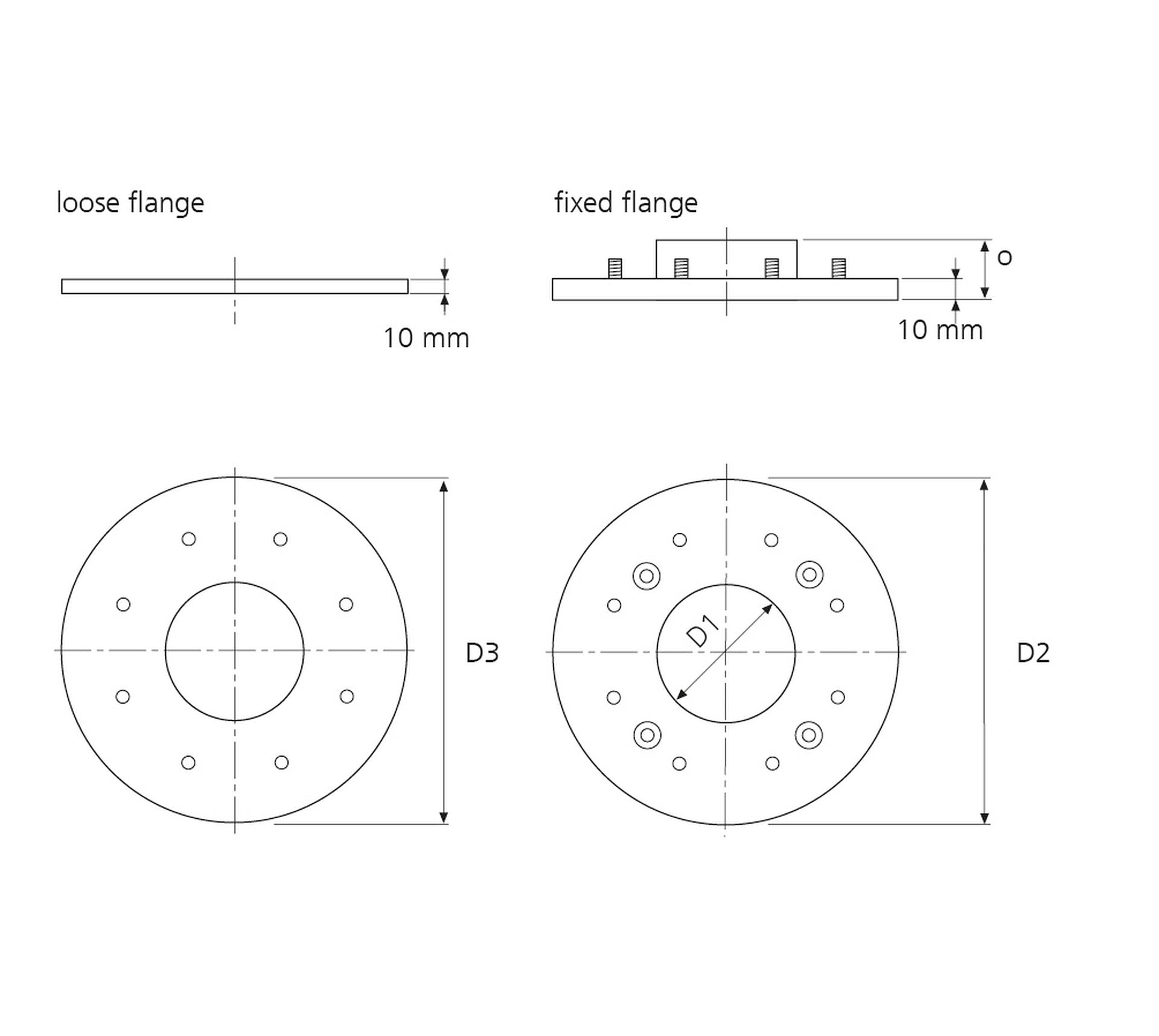

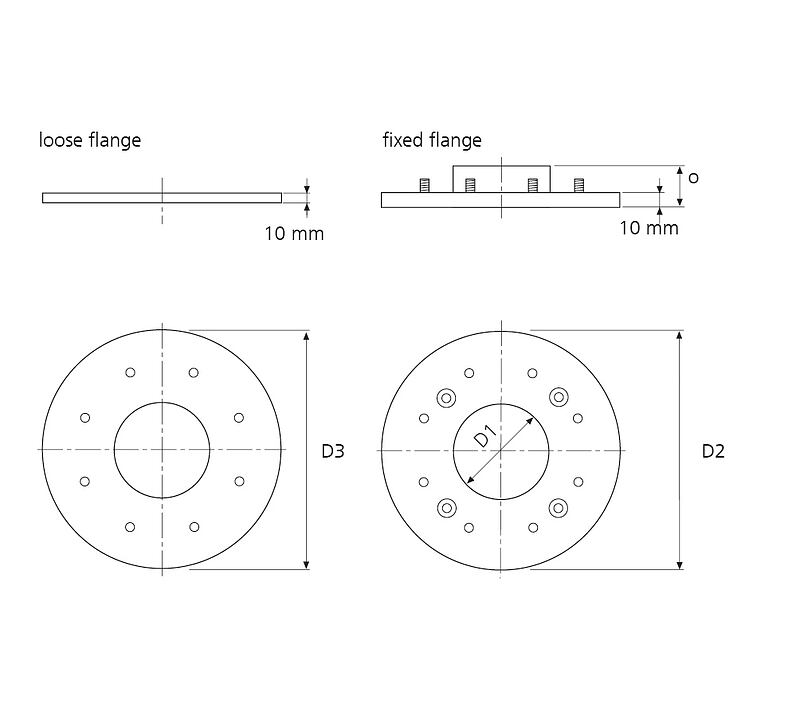

Dimensions:

Fixed flange OD: 420 mm
Loose flange OD: 410 mm
Thickness of fixed flange: 10 mm
Thickness of loose flange: 10 mm

Properties:

For buildings with a basement to DIN 18533 W2.2-E
Holds waterproof sheeting (bitumen or foil)

Application range:

Water exposure class DIN 18533: W1-E, W2.1-E and W2.2-E

Material:

Stainless steel V2A (AISI 304L)

Tightness:

gastight and watertight to 1.0 bar

Downloads

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Tender specifications
